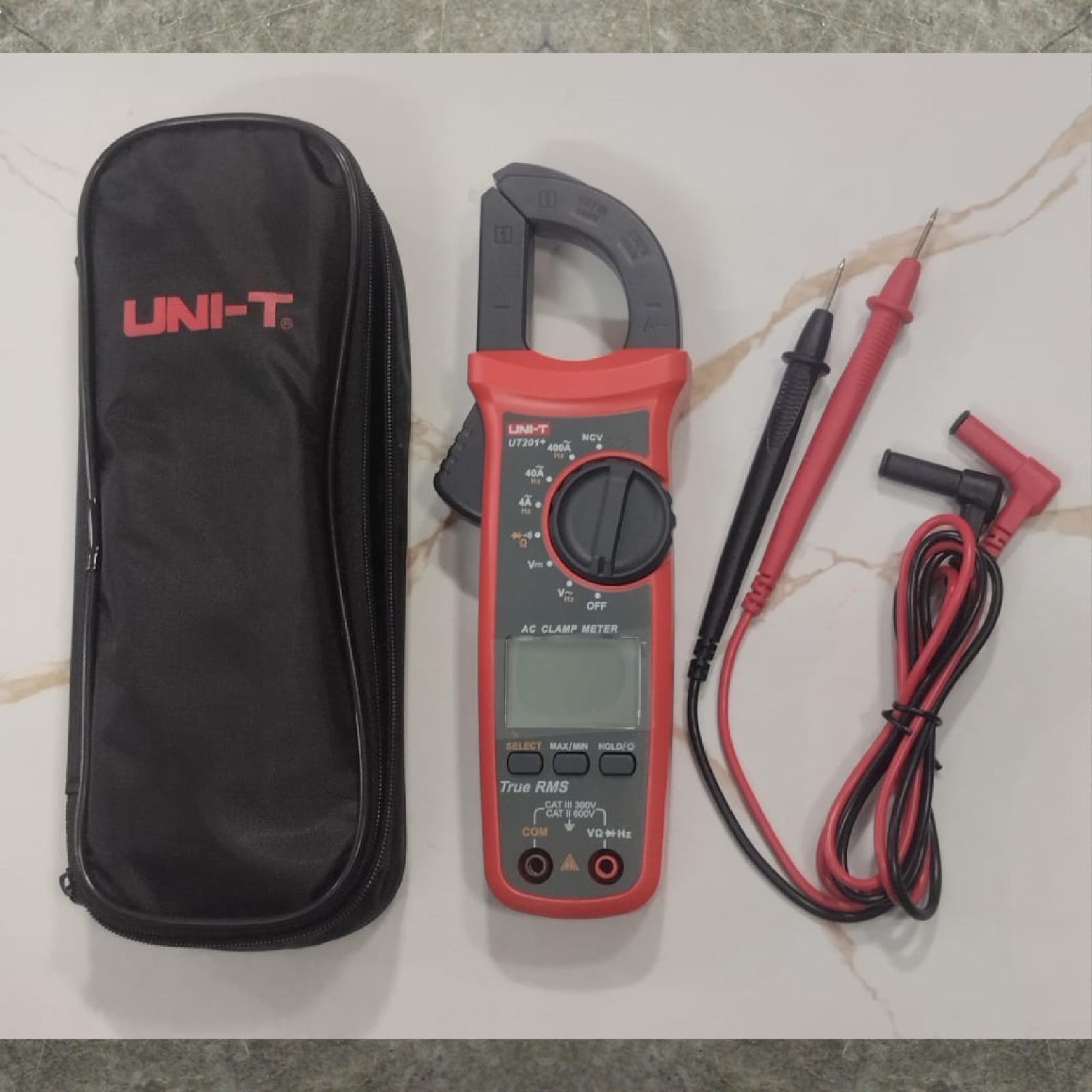

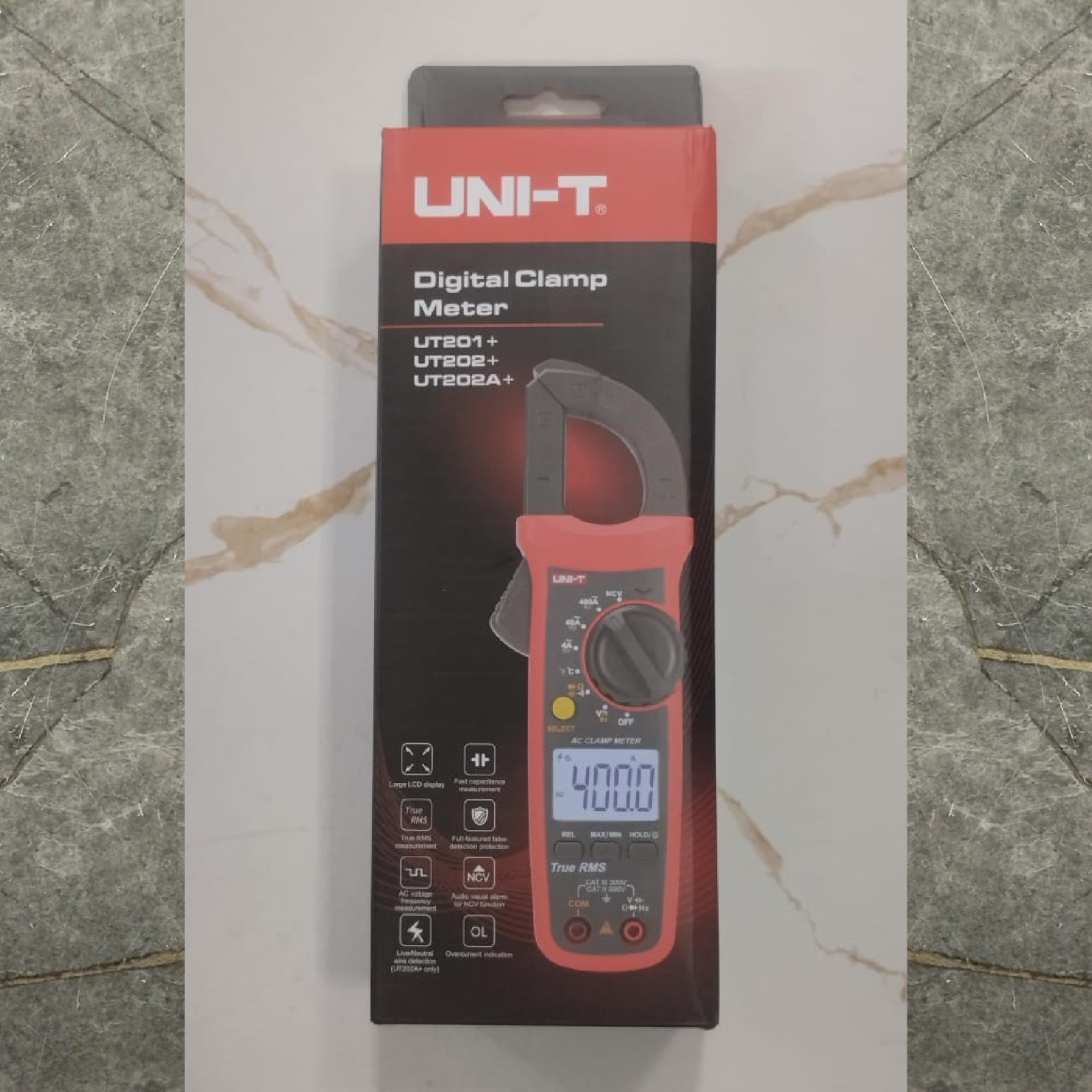

UNI-T UT201+ Digital Clamp Meter

UNI-T UT201+ Digital Clamp Meter

Overview

The UNI-T UT201+ Digital Clamp Meter is a versatile and reliable tool designed for measuring AC voltage, AC current, resistance, and continuity in electrical circuits. Ideal for electricians, HVAC technicians, and DIY enthusiasts, this clamp meter combines precision, durability, and ease of use to provide accurate readings and efficient troubleshooting.

Features

• Wide Measurement Range: Capable of measuring AC current up to 400A, AC voltage up to 600V, and resistance.
• True RMS: Ensures accurate measurement of AC signals, even with distorted waveforms.
• Large LCD Display: Features a clear and easy-to-read LCD screen with a backlight for use in low-light conditions.
• Data Hold Function: Allows users to freeze the current reading on the display for easy recording.
• Max/Min Measurement: Captures the maximum and minimum values during measurement, useful for monitoring fluctuations.
• Auto Range: Automatically selects the appropriate measurement range, simplifying operation.
• Continuity Test: Audible alert for continuity testing, ensuring quick identification of circuit continuity.
• Auto Power Off: Conserves battery life by automatically powering off after a period of inactivity.
• Clamp Jaw: Measures current without the need to break the circuit, ensuring safe and convenient operation.
• Ergonomic Design: Lightweight and ergonomically designed for comfortable handling and use.

Specifications

• Brand: UNI-T
• Model: UT201+
• AC Current: 0-400A
• AC Voltage: 0-600V
• Resistance: 0-20MΩ
• Display: LCD with backlight
• Power Supply: 2 x 1.5V AAA batteries (included)
• Jaw Opening: 28mm
• Dimensions: 210mm x 76mm x 30mm
• Weight: 220g
• Operating Temperature: 0°C to 40°C

Why Choose the UNI-T UT201+ Digital Clamp Meter?

The UNI-T UT201+ Digital Clamp Meter offers a comprehensive solution for accurate and efficient electrical measurements. Its wide measurement range, true RMS technology, and user-friendly features make it an essential tool for professionals and hobbyists alike. Whether you are troubleshooting electrical issues, performing routine maintenance, or working on DIY projects, the UNI-T UT201+ provides the reliability and precision you need to get the job done safely and effectively.
